CNC MACHINE & WATER JET

MRT houses an array of equipment from water jetting, large & small through bore lathes to vertical and horizontal milling machines. We take pride in craftsmanship and utilize top-of-the-line equipment and personnel to assure your project is perfect every time.



CNC Lathe

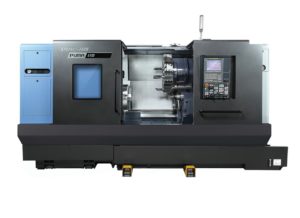

Doosan 5100LC

  • Turning capacity of 25” x 80”
  • Hollow spindle thru bore of 10.8”
  • Dual Chucks
  • 1,000 psi, 18 GPM coolant

Doosan GT2600M

  • Turning capacity of 16” x 24”
  • Hollow spindle Thru bore of 3.2”
  • Live tooling

Horizontal CNC Mill

Doosan HC400II

  • Travels of 24 x 24 x 24
  • 12,000 RPM spindle
  • 400mm(15.75”) pallets

Deckel Maho DMU 50 eVolution 5 Axis CNC Mill

  • Work Range
  • X – 500mm
  • Y – 420mm
  • Z – 380mm

Vertical CNC Mill

Daewoo ACE-500

  • Travels of 40 x 20 x 25
  • 10,000 rpm spindle
  • Thru spindle coolant
  • Thru spindle air

CNC Turning Center

Mori Seiki MT3500S/3500 8-Axis CNC Turning Center

  • X-Travel: 25”
  • Z-Travel: 125″
  • Distance Between Centers: 125″
  • Max Swing Over Bed: 32″
  • Max Turning / Cutting Length: 125″
  • Max Cutting / Turning Diameter: 22″

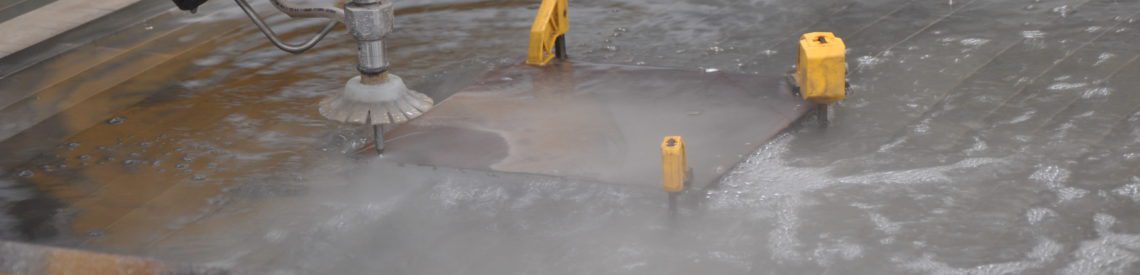

Water Jet – 5 Axis

Techjet-X3 3000

  • Cutting Table Size: 1500 x 3125 mm (5′ 1″ x 10′ 3″)
  • Cutting Area: 1525 x 3050 mm (5′ x 10′)
  • Accuracy Of Motion: plus/minus 0.025 mm (0.001″)
  • Repeatability of motion: plus/minus 0.015 mm (0.0005″)
  • Max Air Speed: 17.5m/min (700 ipm)
  • Max Cutting Speed: 17.5m/min (700 ipm)
  • Max Material Thickness: 200 mm (8″)



3-D Printing

Build Volume

  • Width 330 mm
  • Depth 270 mm
  • Height 200 mm

Printing Process

  • Continuous Fiber Reinforcement (CFR)

Z Layer Resolution

  • 50 μm – 250 μm

Printing Media

  • Composite Base Filaments, Continuous Fibers

Internal Part Geometry

  • Closed Cell Infill with Continuous Fiber Reinforcement

Print Bed

  • Precision Ground Composite
